PRODUCTS

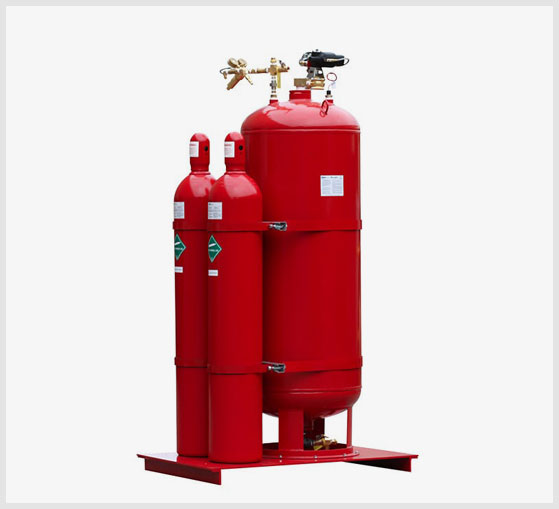

MICROMIST®
Fire Suppression System

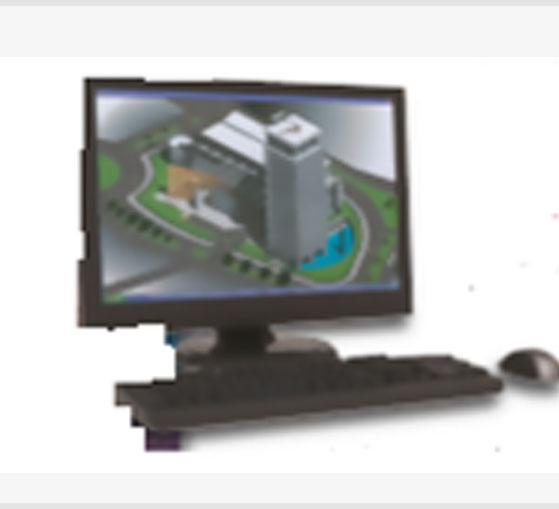

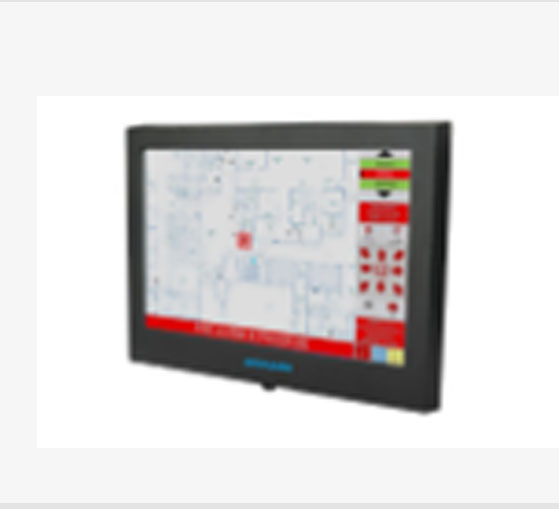

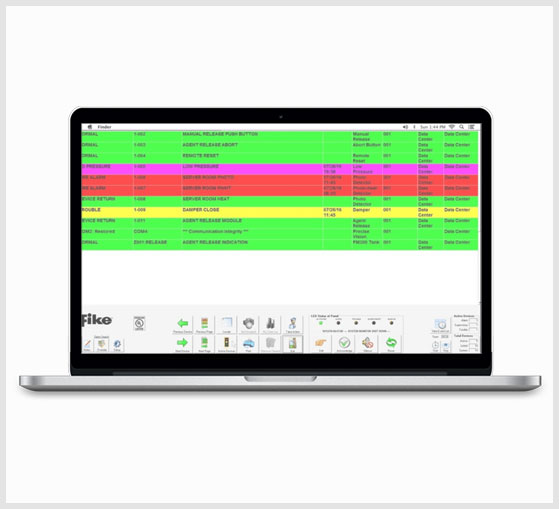

Event Management Software and Computer Graphics
The Fike Micromist® fire suppression system produces a fine mist to extinguish fires quickly with very little residual water. In fact, the Micromist system releases 100 times less water than traditional sprinkler systems, yet effectively extinguishes the fire. That translates into less run-off, less damage and easy clean-up.
Micromist Fire Suppression System
The Fike Micromist fire protection system employs single fluid, intermediate pressure – which reduces installation and maintenance costs associated with redundant and high-pressure piping networks / fittings. Offered in two convenient cylinder size configurations, Micromist is a self-contained (great for applications with or without an available water source), single-fluid, pre-engineered water mist fire suppression system and comes pre-assembled, tested and packaged with all necessary valves and actuation components for system operation (system nozzles must be ordered separately). That’s portability, reliability and simple installation in one easy package.
In addition, because the Fike Micromist system uses water it is naturally environmentally safe, non-toxic and people friendly. Combine Micromist with the intelligent, peer-to-peer speed of the Cheetah Xi detection and control system and you have a cost-effective, fast fire protection system ideally suited for total compartment protection of machinery spaces, compartmentalized gas turbine generators (FM approved) and many other applications.

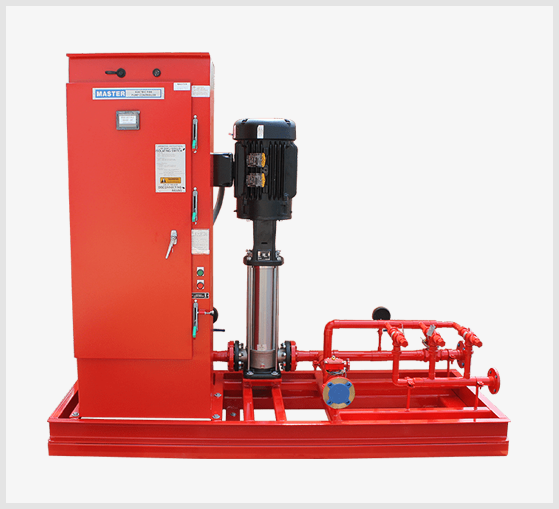

DURAQUENCH®
Pumped Fire Suppression
Effective water mist fire protection.
Water is the safe, natural way to extinguish a fire. But, it can cause significant collateral damage to buildings and their contents. High pressure water mist systems limit the damage, but they do so at great financial cost, often at higher cost than even chemical or inert gas systems.
Fike’s DuraQuench pumped water mist system brings the benefits of water mist fire suppression within reach of most budgets and over the widest possible range of applications.
ECONOMICAL
- The heart of the DuraQuench system is a skid-mounted centrifugal pump which operates at much lower pressures than other water mist systems (175 psi vs. 2,000 psi).
- Lower pressure means lower cost – as much as 60% lower cost than other water mist systems.
VERSATILE
- The DuraQuench system is approved for a wide range of applications including light hazard/HC-1, turbine enclosures and machinery spaces.
- DuraQuench provides maximum freedom when it comes to pipe, fittings, valves and other accessories. Copper, stainless and CPVC pipe are all options, and they can be sourced from your preferred local suppliers.
- Water can be supplied from a reservoir or a building’s water main, providing the potential for unlimited discharge times.
DURAQUENCH® VIDEO

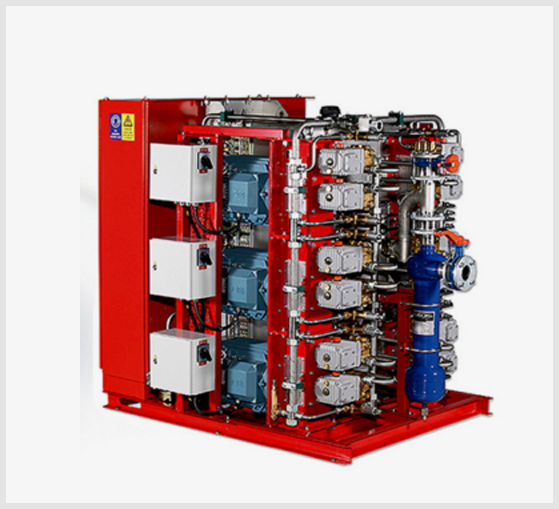

Hi-FOG®
Water Mist Fire Protection
Effective water mist fire protection.
A water mist system is a fire protection system which uses very fine water sprays (i.e. water mist). The small water droplets allow the water mist to control, suppress or extinguish fires by:
- Cooling both the flame and surrounding gases by evaporation.
- Displacing oxygen by evaporation.
- Attenuating radiant heat by the small droplets themselves.
The effectiveness of a water mist system in fire suppression depends on its spray characteristics, which include the droplet size distribution, flux density and spray dynamics, with respect to the fire scenario, such as the shielding of the fuel, fire size and ventilation conditions.
The use of water mist fire suppression, when compared to the use of gaseous agents and traditional sprinkler systems, has revealed advantages such as:
- Immediate activation.
- High efficiency in the suppression of a wide variety of fires.
- Minimized water damage.
- Environmentally sound characteristics.
- No toxic problems
Marioff is renowned for pioneering high pressure water mist fire protection technology for use in passenger ferries. Today, HI-FOG® protects people, property and business continuity in a wide range of applications both on land and at sea.
